Agents pay for APIs with x402, and the key never leaves the vault

Summary

Who it's for. People who leave AI agents running unattended on a home machine and want them to buy what a job needs, such as an API call, without handing an agent a private key or a card.

What it does. Agents on the box pay for HTTP APIs that answer 402 Payment Required, using x402. The box holds the wallet in its vault and a task only ever sees results. Each task has a budget: a payment that fits goes through, and one above it pauses the task until the owner approves it on the portal or phone, while other tasks keep running. Every payment goes into the box's action log with its amount, payee, task and Solana transaction, and counts toward the task's cost.

Coinbase tools.

• The x402 v2 TypeScript SDK: @x402/fetch and @x402/core to pay, @x402/svm for Solana, @x402/express for the test API that charges.
• Coinbase's CDP facilitator, through createCdpFacilitatorClient in @coinbase/cdp-sdk/x402, signed in with the box's CDP Secret API Key. It checks each payment, pays the Solana network fee and submits the transaction.
• The x402.org facilitator, Coinbase's public testnet one, as the fallback when the vault has no CDP keys.
• Not yet: CDP wallets (see Limits).

Evidence

DEMO_LIVE=wallet ./demo runs the real flow on Solana devnet with a scripted agent, so it gives the same result each time. It passed on Oct 23 on the x86 test VM and on the ARM64 test VM:

track wallet
  ok    the box loaded wallet.quote and wallet.pay
  ok    the wallet refused a URL outside the task's hosts: "127.0.0.1:7700 is not one of this task's hosts"
  ok    the owner said no to "Spend $0.03 on wallet.pay? Budget $0.02, spent $0.00.", so the wallet never ran and nothing was spent
  ok    DEMO_LIVE=wallet: WALLET_SOLANA_KEY is in /etc/box/vault.env on this test machine
  ok    the box's agent wallet 6PyiR71c9aw3e8bgnxmcLvJECL5zHE5jMSWqJoVjPTxU holds 19.65 USDC on Solana devnet (test money)
  note  the test API settles through Coinbase's CDP facilitator
  ok    GET /joke answered 402 Payment Required: $0.01 devnet USDC to 39w7W3SB...
  ok    the wallet paid $0.01 and got the joke: An agent walks into a bar. The bar answers 402.
  ok    the $0.03 report is over the $0.02 budget, so the task waits: "Spend $0.03 on wallet.pay? Budget $0.02, spent $0.01."
  ok    approved, it paid $0.03 and got the report
  ok    both payments count toward the task's cost: $0.04
  ok    the log has each payment with its amount, payee, task and transaction, labeled devnet test money
  ok    both transactions, settled by Coinbase's CDP facilitator, are confirmed on Solana devnet: https://explorer.solana.com/tx/Urd99HES...?cluster=devnet
  ok    neither the wallet's key nor the CDP secret is anywhere in the task's log

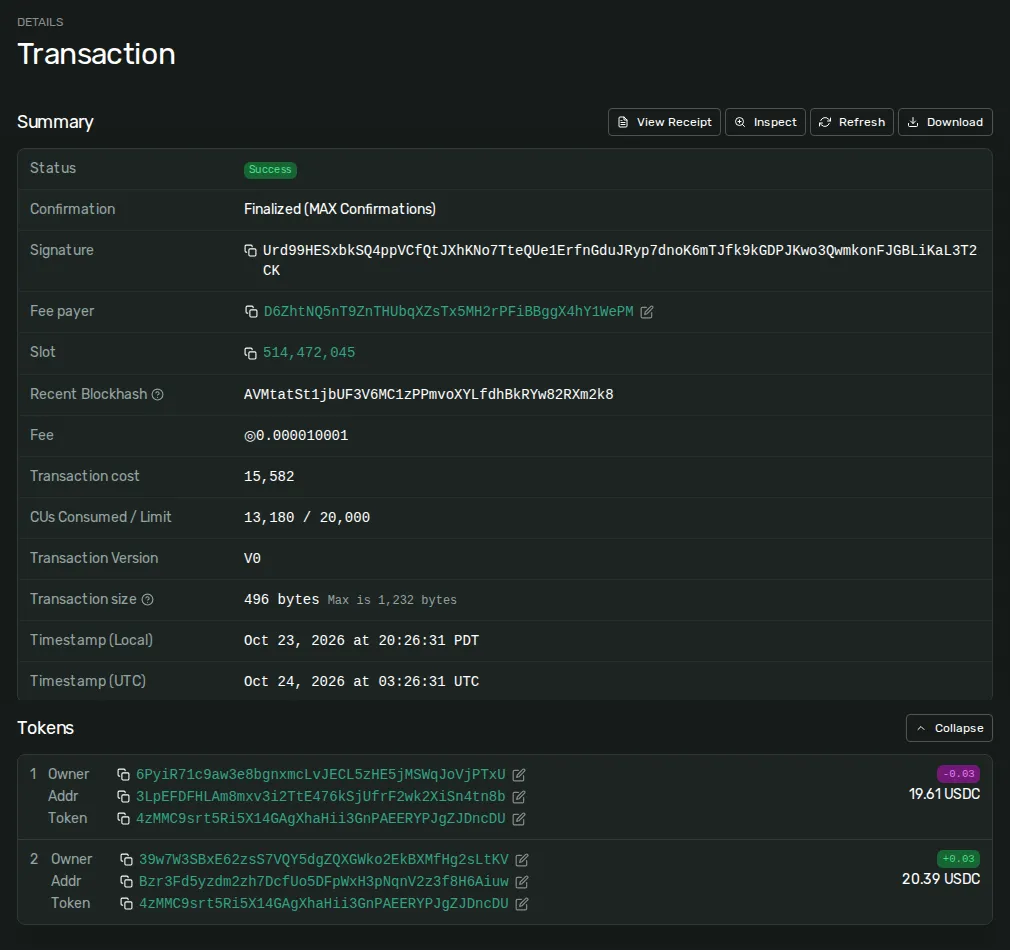

The two transactions of that run are public: $0.01 and $0.03. In each, the fee payer is the facilitator, not the box's wallet.

With a real agent. The same flow ran with Factory's Droid and Claude Sonnet 4.6, given only "buy one joke and one report, then write both into answers.md". It quoted both URLs, paid $0.01, waited for the OK on the $0.03 report, paid it once approved, and wrote the file. The task cost 6 cents: 4 for the two payments and 2 for the model.

Budgets hold under parallel calls. The broker reserves a payment's cost before the call runs. The merge gate checks it in every run (Oct 24, x86 test VM, 175 checks, 0 failed): only one of the two parallel $0.60 payments went through: $0.60 spent, not $1.20 (atomic budget).

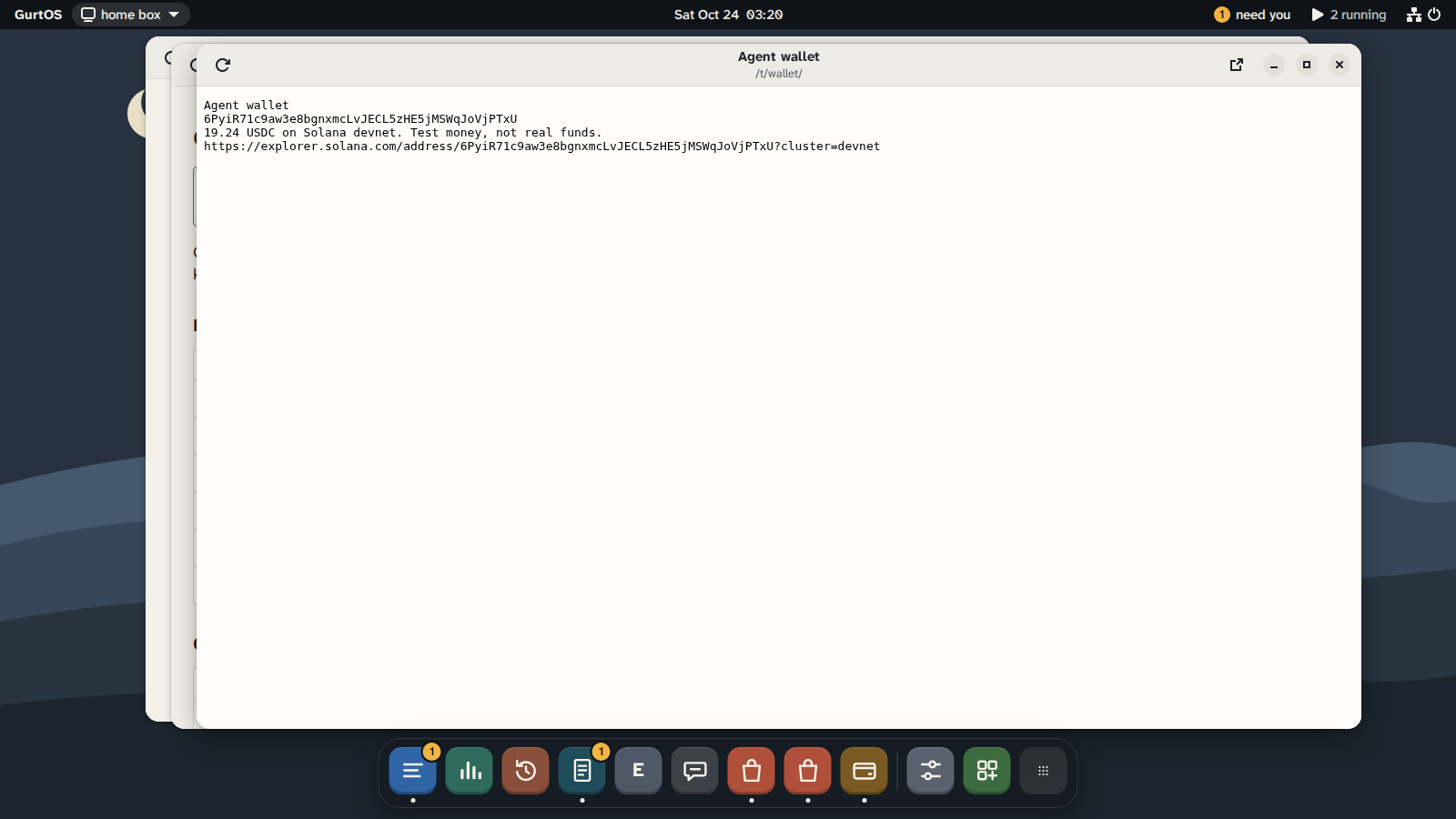

On chain. The wallet's whole history is public: one faucet deposit of 20 USDC, then 36 payments of $0.01 or $0.03 to the test API, 0.76 USDC in all. It held 19.24 devnet USDC on Oct 24 at 12:18 AM PT, after 37 transactions.

How it works

1. Taskwallet.quote {url}The agent asks the broker. It holds no key and has no route to the vault.
2. GurtOS coreThe box fetches the URLOnly a host on the task's list, no redirects. The API answers 402 with its price and payee.
3. Taskwallet.pay {url, cents}The agent names the exact price it was quoted.
4. YouOver budget? Your OKThe task waits on the portal and phone. Other tasks keep running. Denied means nothing is paid.
5. GurtOS corewallet.pay signsReads WALLET_SOLANA_KEY from the vault, checks the offer is exact, devnet USDC, at the agreed price, and signs an SPL transfer.
6. OutsideCDP facilitator settlesThe test API passes the payment to Coinbase's facilitator, which verifies it, pays the fee and submits it to Solana. The API returns the content.
7. GurtOS coreLogged and countedAmount, payee, task and transaction go in the log, labelled devnet test money; the cost counts toward the task once.

Task

its own Linux user, its own copy of the files, no keys

GurtOS core

the GurtOS service on the box, root, the only part that reads the vault

Outside

a service outside the box

You

a person, on the portal, a phone, Jira or a chat

Controls.

• The key stays in the core. It lives in /etc/box/vault.env, readable by root only. Only wallet.pay can read it, inside the box's own process. A task runs as its own Linux user with no way to read the vault.
• The CDP key stays with the test API. It is the seller's key: only seller.ts reads it, and no box tool declares it, so no task or tool can get it from the vault.
• Budget, then the owner. The broker counts each payment toward the task's budget and reserves it before the call runs. Above the budget, the task waits for an answer on the portal or phone. Denied means nothing is paid.
• Exactly the agreed price. wallet.pay names the amount, which is what the budget check and the owner saw. If the API asks for anything else, it pays nothing.
• Only devnet USDC. It pays only the exact scheme on Solana devnet in devnet USDC. The x402 client also refuses any single payment over $1, its default.
• Only the task's hosts. The wallet reaches only hosts on the task's list, by the same rule as the task's network, and refuses redirects. A task cannot point it at the box's own API.
• Never twice. Before paying, the wallet writes a durable mark for that call. If the box loses power mid-payment, the resumed call refuses to pay again instead of guessing.

Try it

1. Make a wallet on a box. This prints the vault line, and the address on stderr:

   node --experimental-strip-types tracks/wallet/keygen.ts | sudo sh -c 'cat >> /etc/box/vault.env; chmod 600 /etc/box/vault.env'

2. Fund it with devnet USDC at faucet.circle.com: keep USDC, choose Solana Devnet, paste the address, press Send 20 USDC. The wallet needs no SOL, because the facilitator pays the fees.
3. Add CDP keys for Coinbase's facilitator: in the CDP Portal, create a Secret API Key and add CDP_API_KEY_ID and CDP_API_KEY_SECRET to the vault. Without them the test API settles through x402.org instead.
4. Run it: DEMO_LIVE=wallet ./demo from the repo root. It ships the checkout to a test VM and runs every step, with real devnet payments for this track.
5. Or by hand: start the test API (node --experimental-strip-types tracks/wallet/seller.ts, port 4021), then start a Droid task with the tools wallet.quote and wallet.pay, the host api.localhost:4021, a 2 cent budget and the prompt "Buy one joke with the box wallet and write it to joke.md." The README has the exact command.

Live, test and simulated

Part	State	Details
x402 payments	Test money	Real x402 payments in USDC on Solana devnet (Circle's devnet mint), confirmed on chain. Devnet USDC has no value.
CDP facilitator	Live	Coinbase's facilitator verifies and settles each payment when the vault has CDP keys; the public x402.org facilitator is the fallback without them.
The paid API	Simulated	Our own test API (seller.ts): GET /joke costs $0.01 and GET /report $0.03. It stands in for a real paid API.
The agent	Live	Droid with Claude Sonnet 4.6 in the live agent run. The merge gate uses a scripted agent so it gives the same result every time.
CDP wallets	Not built	They need a CDP wallet secret, which the box does not have. The box holds the wallet key itself, in its vault.

Limits

• Devnet only, by design. Mainnet needs a different network and asset in track.ts, real USDC and a review.
• The box holds the wallet's key itself. A CDP wallet would keep the key with Coinbase so no private key is on the box at all; that needs a CDP wallet secret.
• The approval question comes from the core: "Spend $0.03 on wallet.pay? Budget $0.02, spent $0.01." It does not name the payee or URL yet. The quote step just before it, in the same task's log, does.
• GET only. APIs that want a POST body are not supported yet.
• After a power cut in the middle of a payment, the call fails rather than checking the chain for whether the payment went through. The owner checks the wallet on the explorer.
• API responses are cut at 20 KB.

Builder feedback

Kept while building, Oct 23, with @x402/core, @x402/fetch, @x402/svm and @x402/express 2.28.0 and @coinbase/cdp-sdk 1.60.0. The full notes are in FEEDBACK.md.

What worked well. The first devnet payment settled on the first try, about 15 minutes in, and took about 1.5 s from the 402 to the 200. Swapping the x402.org facilitator for the CDP facilitator was one line. On Solana the facilitator pays the fee, so an agent wallet needs only USDC, which saved us from a devnet SOL faucet that answered 429 all evening. registerPolicy was the right hook to pay only the devnet USDC offer at the approved price.

Friction. The four that cost the most time come first.

1. Two Solana versions in one install: @x402/svm 2.28.0 pulls @solana/* 6.10 while its token programs want @solana/kit ^5. We had to pin kit 5.5.1 by trial. About 30 minutes.
2. A payee without a USDC account fails with HTTP 402 and an empty body; the cause is only in a base64 header. About 20 minutes. Asks: name the cause, and say in the seller quickstart that a new payTo needs a token account.
3. No idempotency key for payments, so a box that dies between settle and receipt would pay again on resume. We wrote our own durable mark. About 20 minutes.
4. @coinbase/cdp-sdk/x402 imports @x402/evm on load even for Solana, failing with ERR_MODULE_NOT_FOUND. About 5 minutes.
5. Two CDP facilitator helpers, one stale: @coinbase/x402 2.1.0 still shows up in docs and pulls about 82 MB.
6. HTTPFacilitatorClient prints [x402] extension responses: {} on every payment with CDP, with no way to turn it off.
7. decodePaymentResponseHeader on a missing header throws a bare JSON SyntaxError.
8. The CDP facilitator's /supported answers 401 without keys, so we could not check Solana devnet support before signing up.
9. "Pay exactly this much" needs a custom policy; a built-in expectedAmount option would be harder to get wrong.
10. Docs link to both coinbase/x402 and x402-foundation/x402, and it took a moment to trust they are one project.
